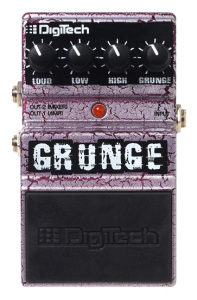

Features
- Level (Loud) controls the distortion output level of your guitar signal.
- Low adjusts boost and cut of bass frequencies.
- High adjusts boost and cut of high frequencies.
- Gain (Grunge) controls distortion gain from moderate to extreme.
- Dual Outputs. The Amp output is for connecting directly to a guitar amplifier. The Mixer output features Cabinet Emulation circuitry for connecting directly to a mixing board or recording device.
Specifications
| Power Supply | 9V Alkaline Dry Battery |
| Power Consumption | 4.8Watts (w/optional PS200R power supply) |
| Battery Life | Approximately 18 hours (with continuous usage) |
| Dimensions | 4 15/16″(L) x 3 1/8″(W) x 2 1/8″(H) |
| Unit Weight | 1.38 lbs. |
