Active Crossover
- Stereo 2-way or mono 3-way operation
- 24 dB/octave Linkwitz-Riley filters with zero phase error at crossover frequencies
- Perfect flat summed amplitude response at all crossover frequencies
- Independent limiters on all outputs with pre-defined time parameters

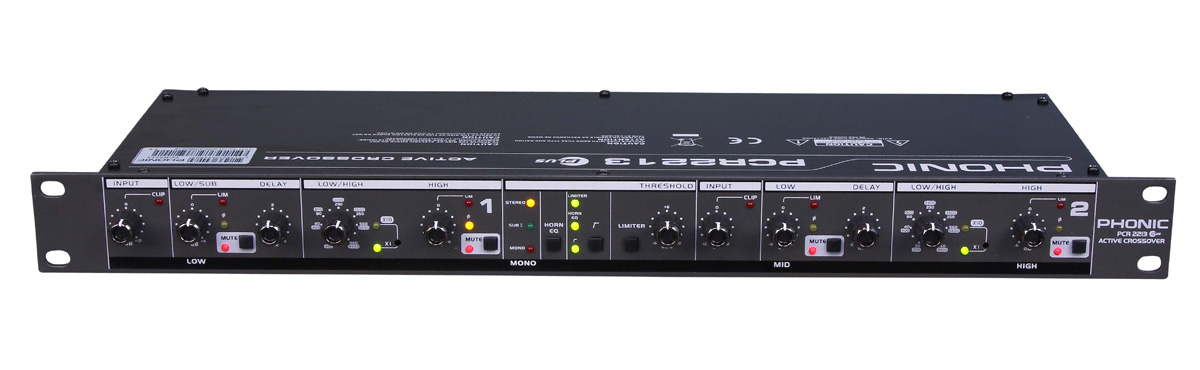

- Latching mute push buttons on all outputs, vital during setting up and troubleshooting
- LED indication on all important switching functions for easy status identification
- Crossover frequencies continuously variable from 80 – 8000 Hz
- Time/phase alignment via polarity switches and 4 ms time delay controls
- Switchable horn EQ curve to compensate the HF roll-off
- RF and Subsonic input filters
- High precision components and potentiometers ensure excellent quality and accuracy of settings
- Additional subwoofer output with combines channel 1 and 2 signals

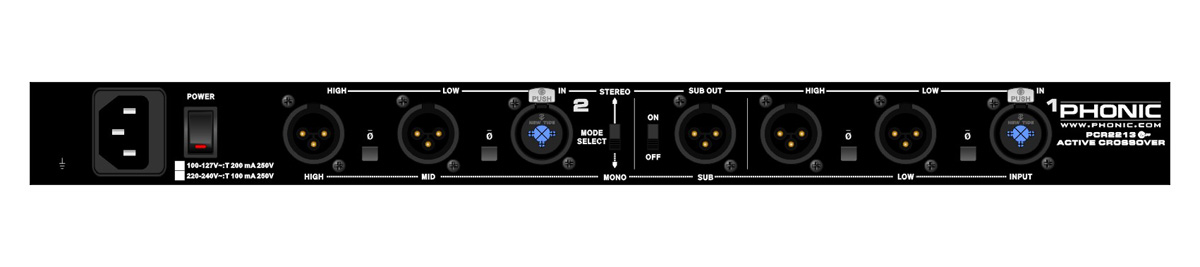

- Balanced XLR inputs and output connections
