Phonic Handheld Audio Analyzer with USB Interface – PAA3  Price : $

Built-in calibrated measurement microphone

  • 1/3 octave real-time analyzer
  • 31-band EQ setting value display (boost/cut)
  • RT60 measurement
  • Phase checker
  • Noise generator with pink noise, 1kHz and polarity test signal, balanced output
  • Memory and average calculation function
  • SPL meter calibration through sound level calibrator
  • Sound Pressure Level Meter from 30 dB~130 dB
  • Line signal measurement display in dBu, dBV, or Volts (AC)
  • SPL meter and level meter have three level range selections
  • Maximum level, Peak hold displays
  • XLR input and output sockets
  • USB interface for desktop software control
  • Audio test signal CD and supporting software
  • Three power modes: (1) Power Save (2) On (3) Off
  • Operates seven hours with four AA batteries
  • AC power adapter included

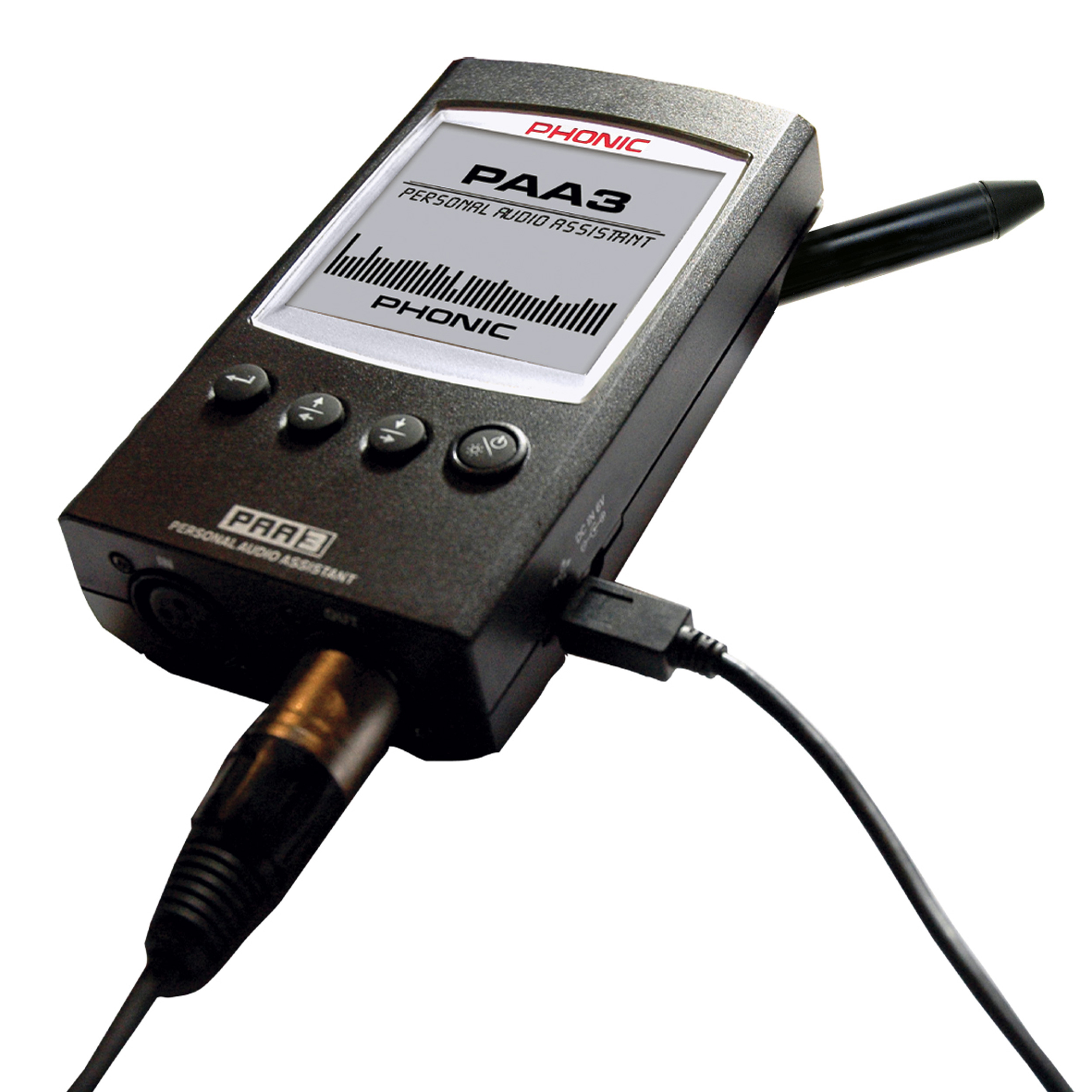

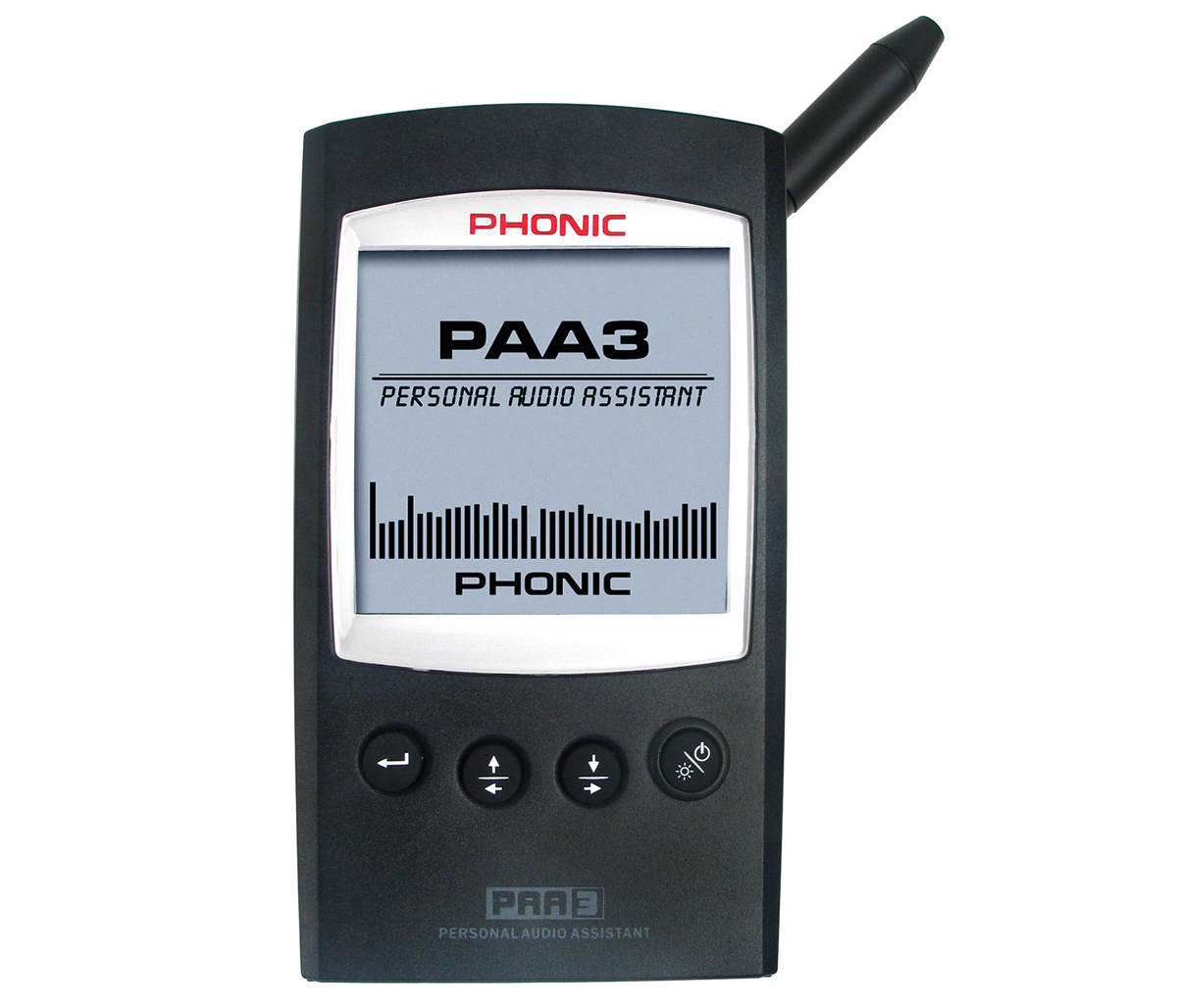

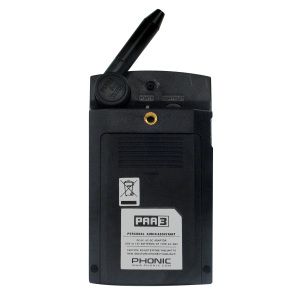

paa3_front paa3_side paa3_back
