Phonic Helix Board – 18  Price : $

6-Mic/Line 4-Stereo 2-Group Mixer with USB 2.0/FireWire Interface

  • 18-input small-format analog mixer with extremely low noise circuitry
  • 96kHz USB 2.0/FireWire interface for streaming 16 independent channels of audio to computer with near-zero latency
  • Pre/post setting for swapping USB 2.0/FireWire input channels sent to computer from pre-low cut, -EQ to post-EQ, post-fader
  • 2 channels of monitoring from computer via USB 2.0 / FireWire interface, can be assigned to control room monitors, Main mix and AUX 1
  • Channel 15/16 routed to computer can be selected from main mix, group 1/2 and AUX 2/3
  • DFX, our 32/40-bit high definition algorithm digital multi-effect processor with 100 programs plus tap delay, foot switch jacks and volume controls for sending processed signal to AUX send 1 & 2
  • Six Mic/Line channels with inserts
  • 8 extremely low noise mic preamps
  • Four stereo Line channels
  • 3-band EQ with swept mid-range
  • 75 Hz low-cut filter on mono channels
  • Three AUX sends, one with Pre/Post switch
  • Two stereo AUX returns, one with effect to monitor level control
  • +48V phantom power on Mic channels
  • Solo feature on each input and output
  • Two true subgroups with Main L and R routing switches
  • Built-in switching power supply with universal connector, 100-240 VAC, 50/60 Hz
  • Rack-mounting kit included
  • S/PDIF digital audio output
  • Compatible with Mac OSX and Windows XP, Vista & 7
  • Steinberg Cubase LE 5 digital audio workstation software included

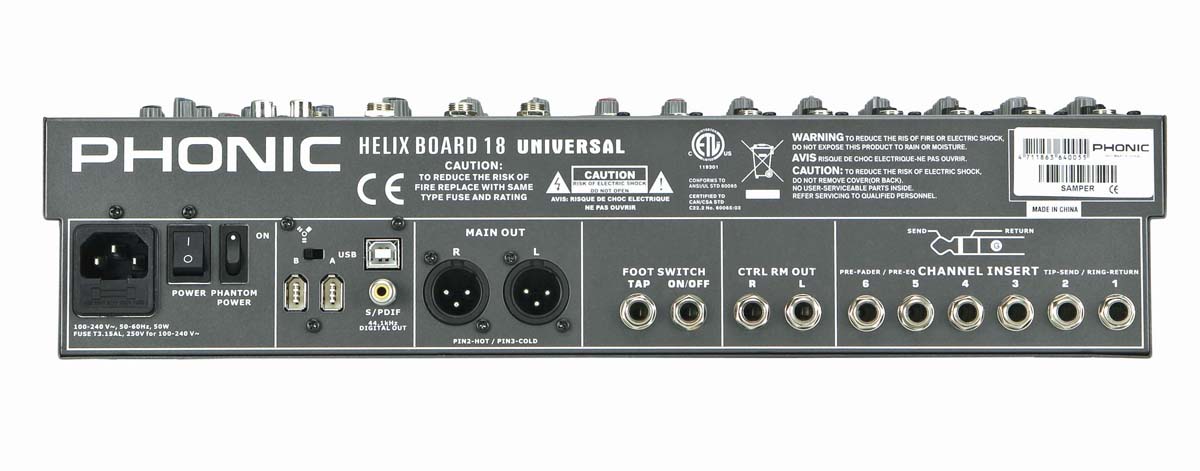

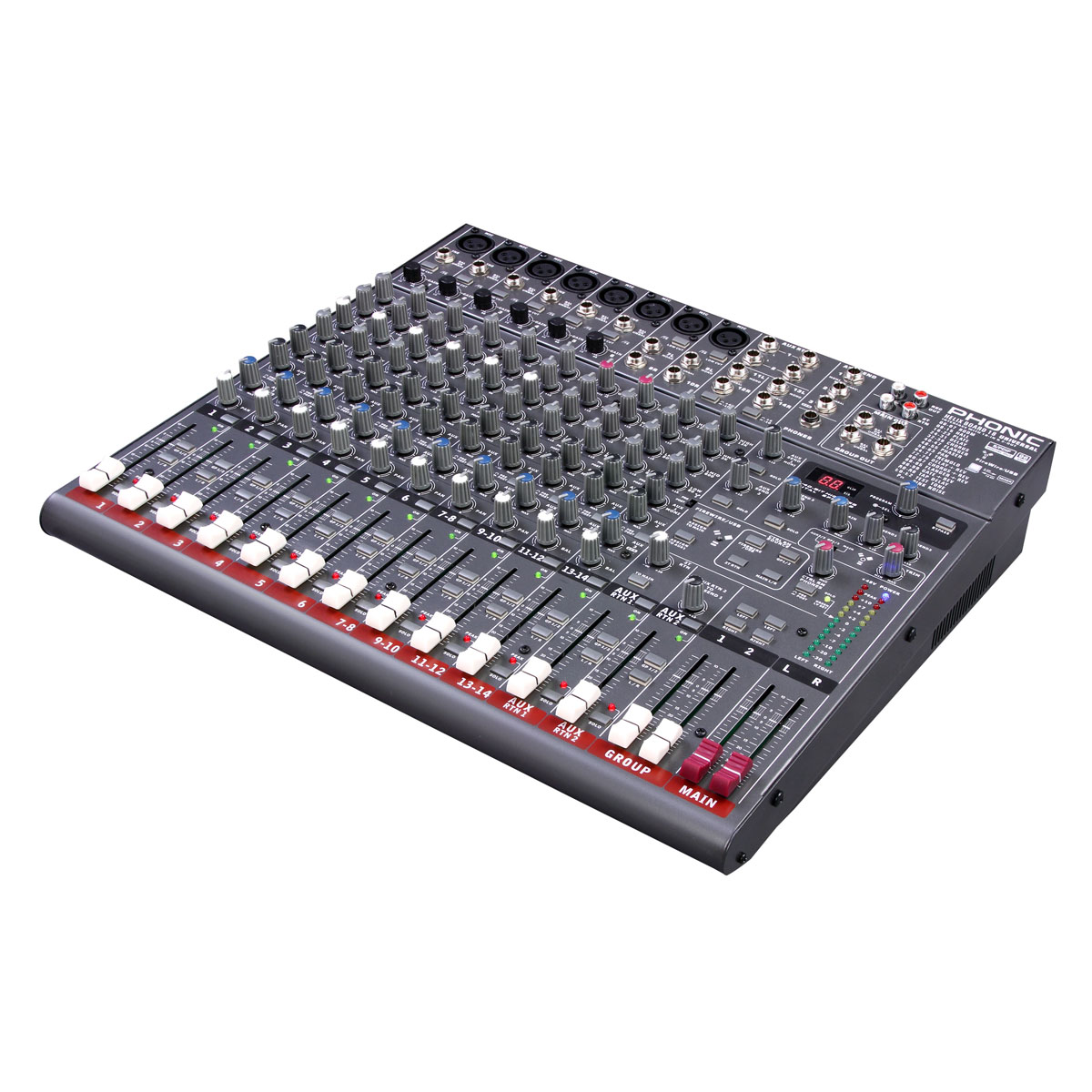

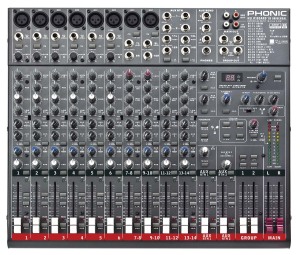

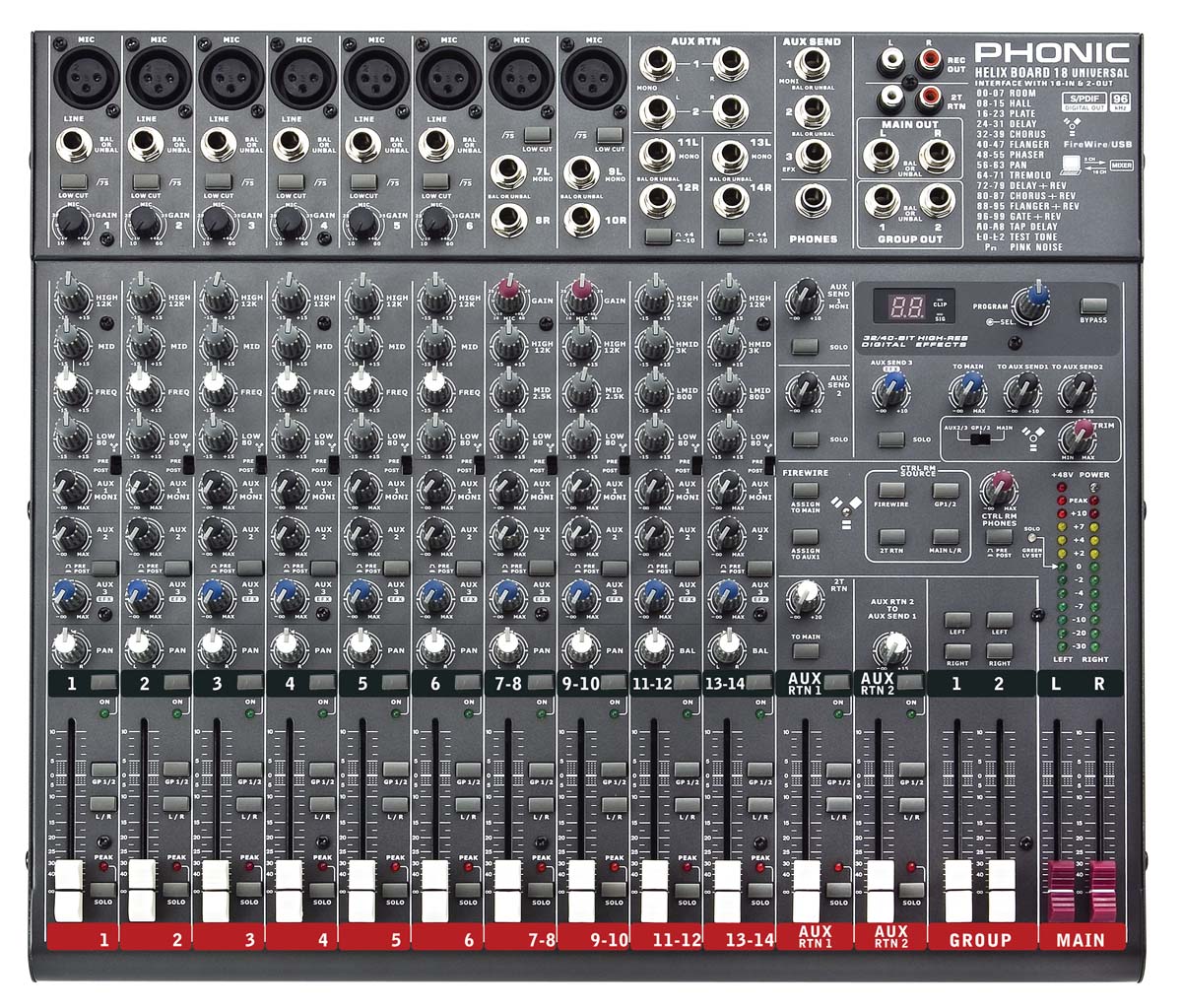

im-HelixBoard18Universal-front im-HelixBoard18Universal-side im_HelixBoard18Universal_back
