5000 Watt Power Amplifier
- 2500W + 2500W @ 2 ohm; 5000W @ 4 ohm bridged
- Dual mono, high current power supply for increased reliability and performance
- High-current toroidal transformers for greater two-ohm power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Selectable high pass filters (30 Hz or 50 Hz) protect speakers and increase headroom

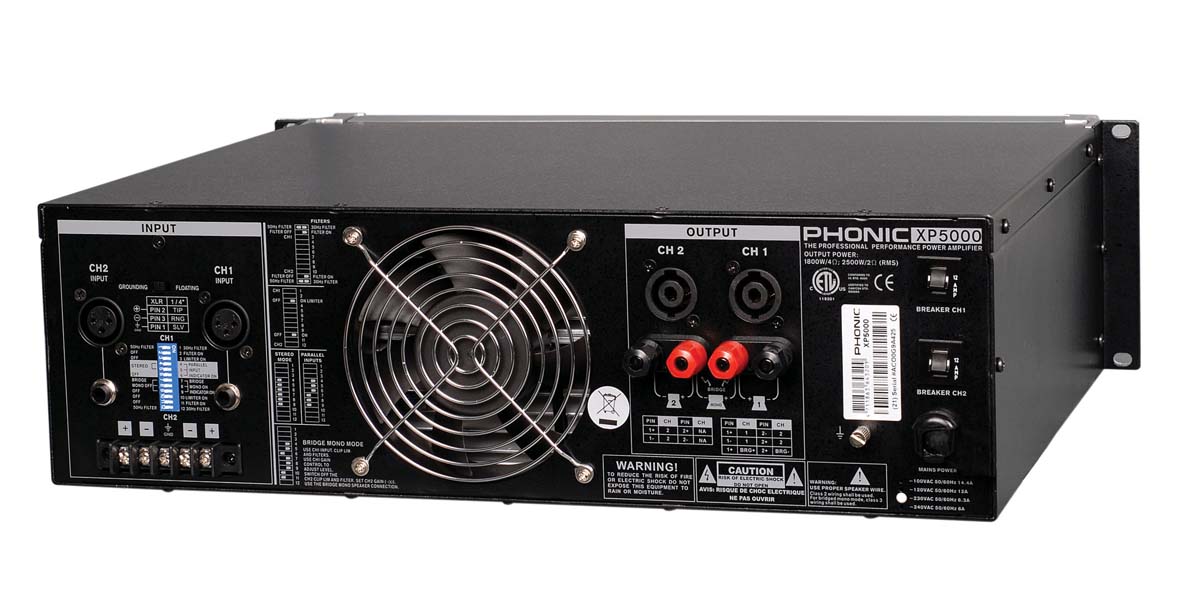

- Balanced 1/4″ (6.3 mm) TRS, XLR, and barrier strip inputs for maximum flexibility
- Binding post and Speakon-type outputs
- Selectable stereo, parallel & bridge mono amp modes
- Ground lift switch to prevent hum
- Signal level at -40, -20, -10, protect and clip LED indicators to monitor performance
- Bridge mono and parallel mode indicators

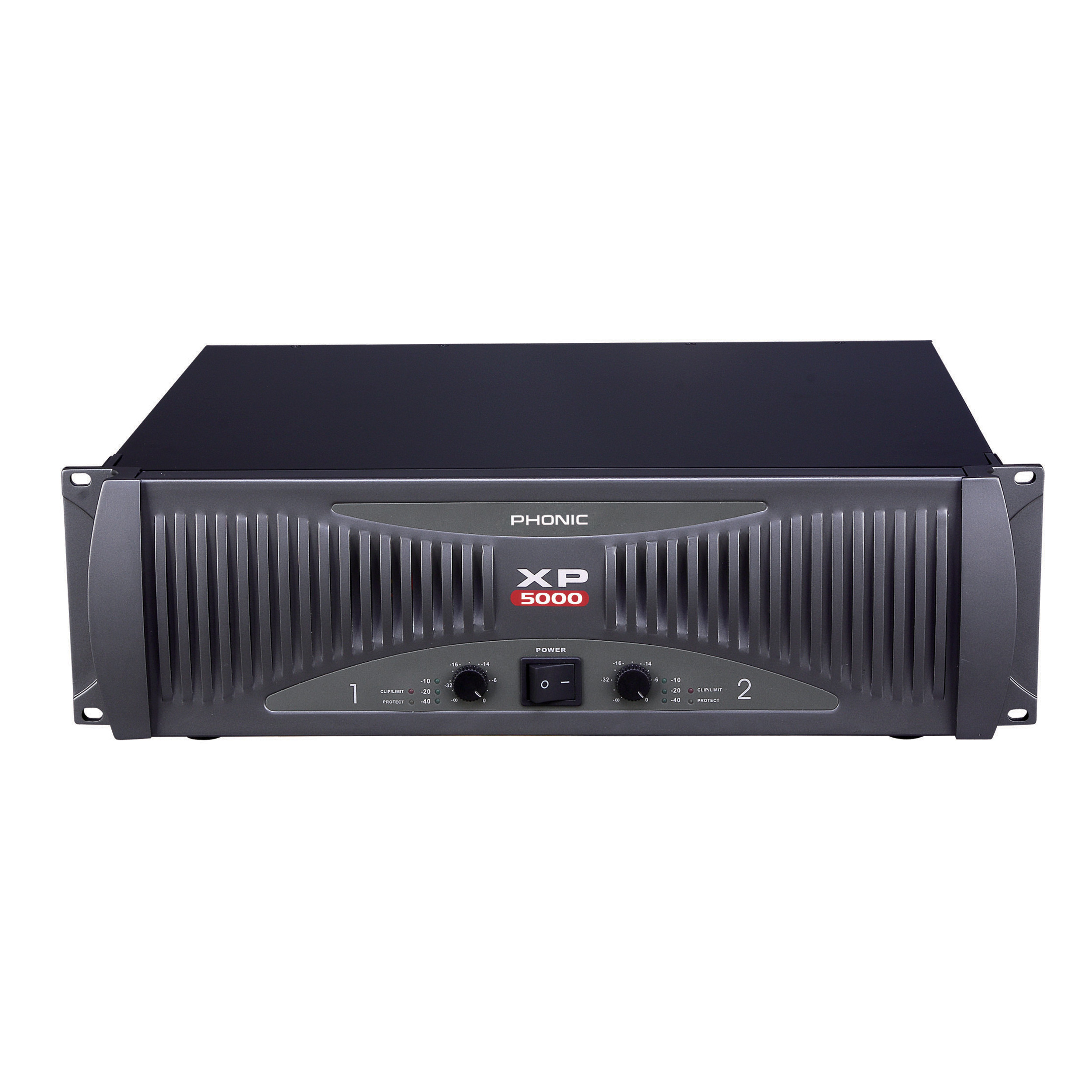

- Front mounted detented gain controls for easy access
- Fast Recovery design for lower distortion at clipping
- Advance protection circuitry guards against: short circuit, open circuit, thermal, ultrasonic, and RF protection, stable into mismatched loads, on/off muting, DC fault output crowbar
- Three rack unit high
